Suited for residential
and semi public use

Single Wallbox Series

An intelligent, affordable and scalable charging solution that fits any location thanks to its attractive design and ease of installation.

The Single WallBox is suitable for professional, fleet and residential use.

Thanks to the compact form factor & flexible mounting – including wall mounting or pedestal solutions – our charger can be installed in every location. To accommodate this, Enovates offers contemporary single or double pedestals and appropriate anchors which are compatible with the rest of our product-lines as well.

Product brief

Intelligent, scalable, and attractive design suitable for all locations.

Flexible installation: wall-mounted or pedestal options.

Universal charger available in socket and cable variants, compliant with all EU and UK regulations.

Integrated MID meter certified by NMi for accurate financial settlement specifically for fleet users.

RFID reader for secure user identification and ad hoc payment via NFC link. Contactless options are also available.

Specifications

Dimensions

248 x 426 x 120 (w/o shutter)
248 x 426 x 165 (with shutter)

Charging mode

Mode 3 (IEC 61851-1 ed. 3)
ISO 15118

Metering

MID certified meter

Socket

AC–Type2 socket
Optional: Schuko, Shutter

Connectivity

Wifi (AP & Client)
Ethernet (WAN + LAN, router)
2G – 4G – LTE

Active Load Balancing

Supported via optional hardware

Fully customizable

The charger has a flexible enclosure approach, which can easily be rebranded or fully customized to match the customer’s identity.

Custom prints, RAL-colors and even the shape of the enclosure can be modified to make the charger stand out and make a visual impact.

Available in different variants

Depending on where and how you wish to install the Single WallBox, different accessories and options can be added.

The flexible charger design makes the device fittable in any location, being wall mounted or standalone using a dedicated pedestal. It is available in both socket or cable variants.

Finally, the charging station is universal since it complies to all local regulatory or installation requirements.

Easy management and intelligent charging with My-Enovates User App

Available for both Android and iOS, our app connects effortlessly to your charging station(s).

Experience the convenience and intelligence of the Enovates Single Wallbox with our advanced user app.

With the My-Enovates User App, managing your wallbox is easier than ever: Manage consumption, set power limits and oversee load balancing with ease.

This white-label application can be customized to meet your customer’s needs.

Learn more about the Enovates User App and discover how it complements your wallbox for an enhanced, smart charging experience on the My-Enovates User App web page.

Google Play Store

App Store

Optional hardware

Available hardware includes load balancing and smart charging modules.
Not sure which one you need? We’ll happily assist you.

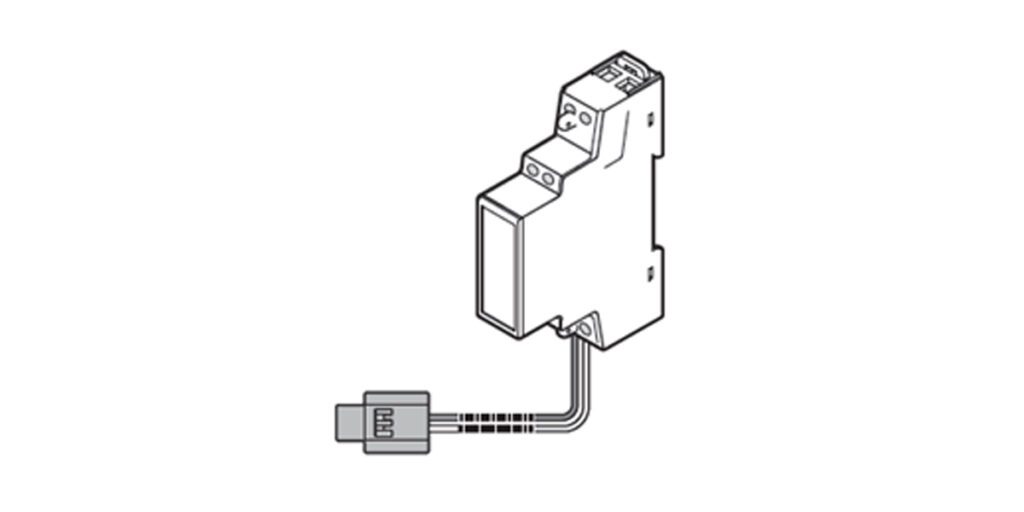

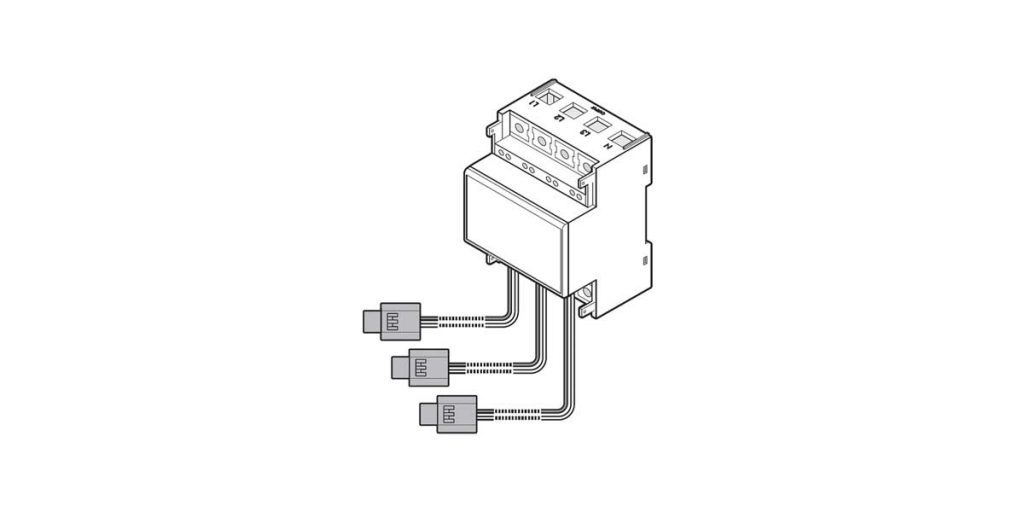

eDSB-I

The eDSB-I is an active load balancing device suited for all Enovates charging stations and focused on residential usage., with a single phase grid connection.
Read More

CLIPON80A-COIL-3

The CLIPON80A-COIL-3 is an active load balancing device, suited for the Single Wallbox and focused on residential usage.
Read More

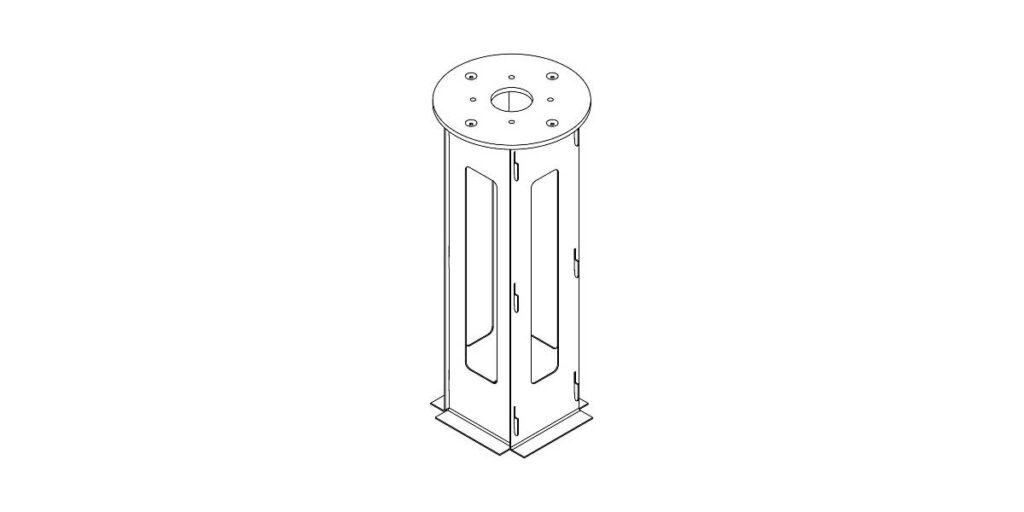

Anchor Single Wallbox

Our well-engineered anchor for the Single Wallbox simplifies the installation process and allows a fast deployment.
Read More

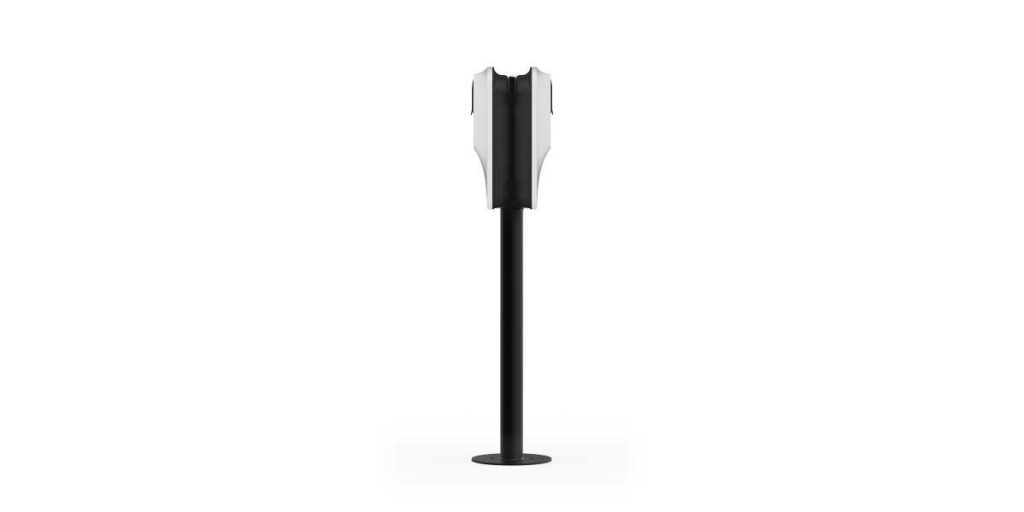

Back to back Pedestal

Mounting pole for two back to back mounted Single WallBox chargers, making it suitable for installation on any horizontal surface.
Read More

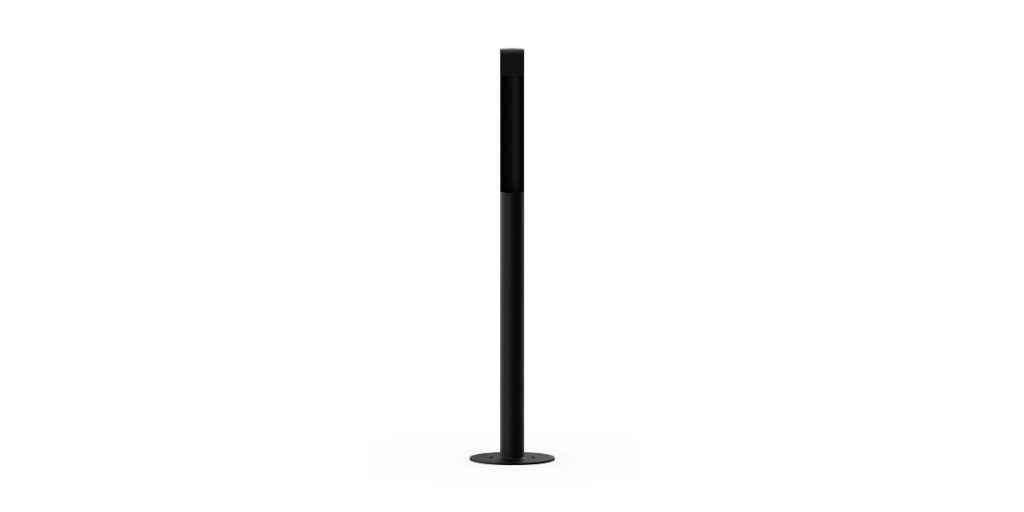

Pedestal

Mounting pole for the Single Wallbox, making it suitable for installation on any horizontal surface.
Read More

eDSB-III

The eDSB-III is an active load balancing device suited for all Enovates charging stations and focused on residential usage., with a three phase grid connection.
Read More

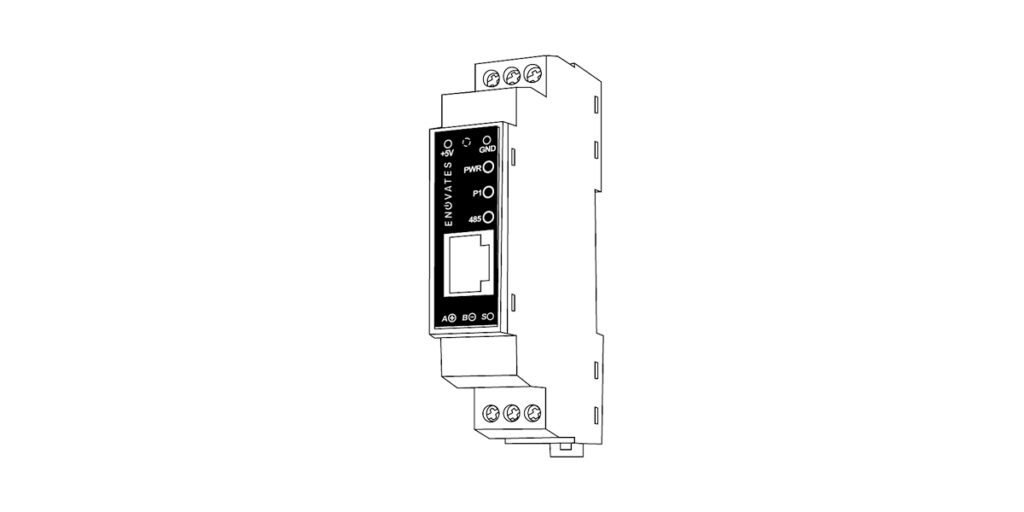

eDPB

The eDPB is an active load balancing device that uses the P1 data of a digital smart meter. It is suited for all Enovates charging stations and focused on residential usage.
Read More

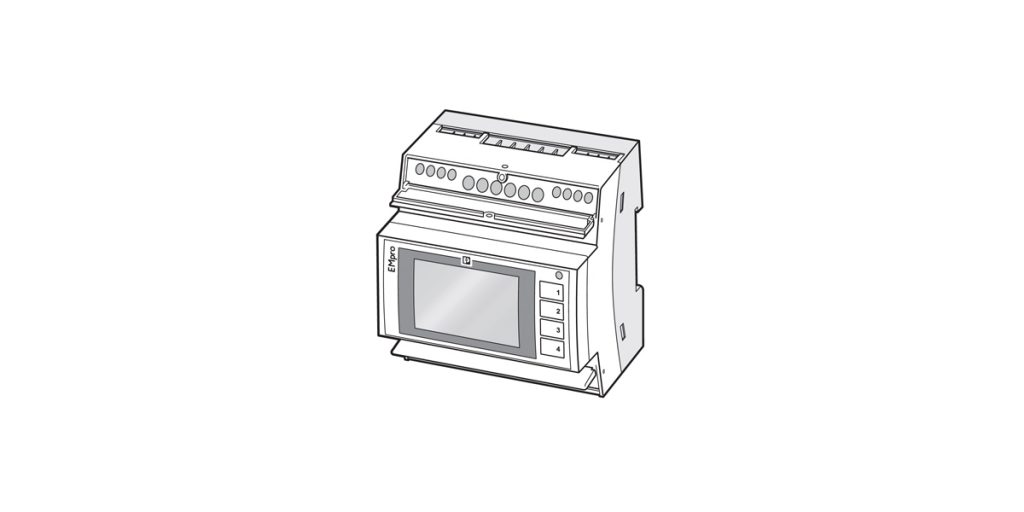

eDLB

The eDLB is an active load balancing device suited for all Enovates charging stations. It is focused on charging hubs with an installation current over 80A.
Read More

Our Single Wallbox is smart, connected and ready for the future by complying to the highest and newest EU standards. The charger offers support for active and passive load balancing & smart charging.

Where needed, the charging station can be completed with additional options, based on the local needs & regulatory requirements. This way, the charger can be integrated in various eco-systems.
